Індуктивный датчик NI4-DSC26-2AP6X2-H1141 Turck
Обзор
Inductive Sensor

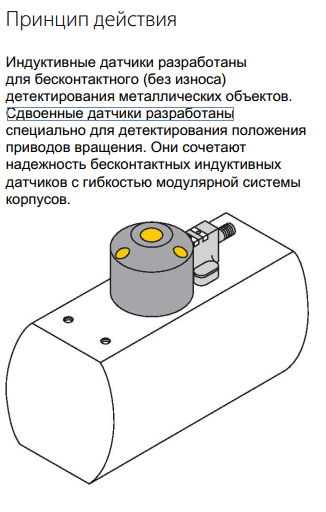

For Rotary Actuators

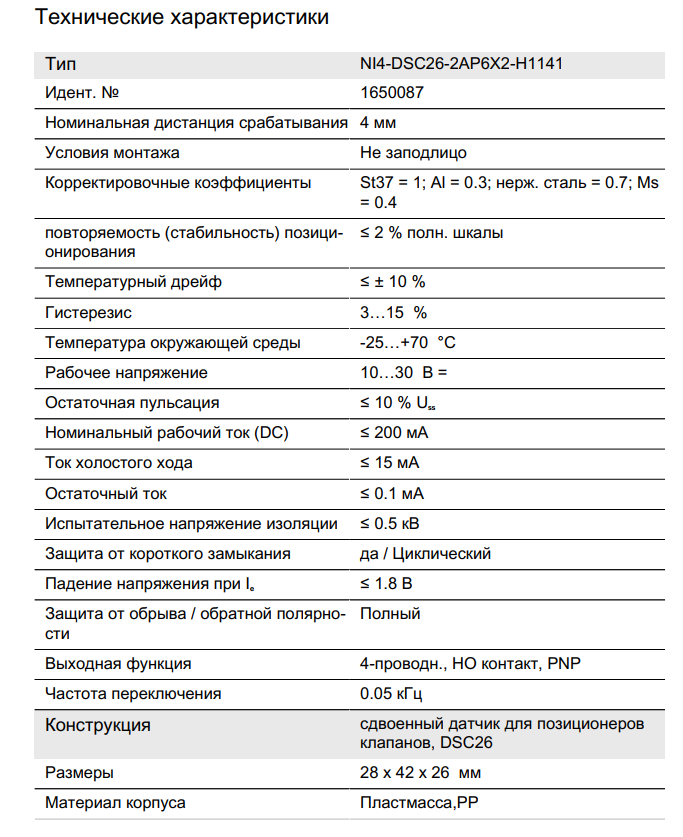

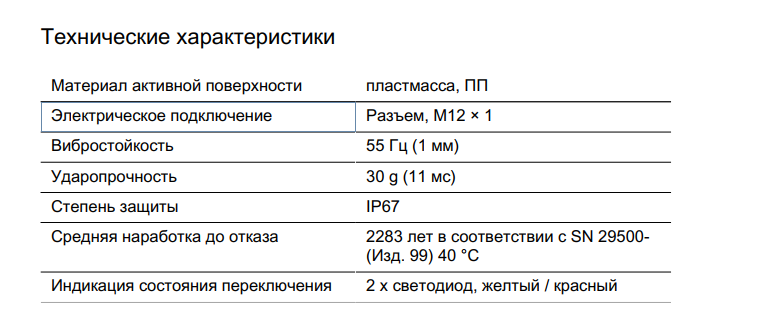

Technical Data
| Design | Dual sensor for rotary actuators |

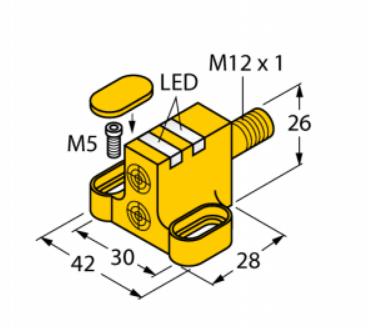

| Construction size | 28 x 42 x 26 mm, DSC26 |
| Rated switching distance | 4 mm |
| Mounting conditions | Non-flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 0.050 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PP |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
