Датчик Leuze ISS 118MM/4NO-8E0
Категории:
Обзор

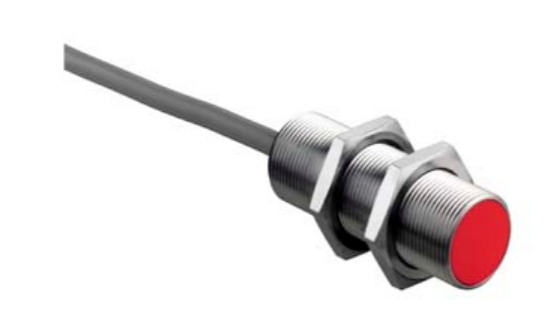

Индуктивный датчик Leuze ISS 118MM/4NO-8E0
| Series | 118 |
| Typ. operating range limit Sn | 8 mm |
| Operating range Sa | 0 ... 6.48 mm |
| Protective circuit | Overload protection Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 ... 30 V, DC |
| Residual ripple | 0 ... 10 %, From UB |
| Open-circuit current | 0 ... 10 mA |
| Temperature drift, max. (in % of Sr) | 10 % |
| Repeatability, max. (in % of Sr) | 1 % |
| Switching hysteresis | 15 % |
| Voltage type | DC |
| Switching current, max. | 200 mA |
| Residual current, max. | 0.01 mA |
| Voltage drop | ≤ 2 V |
| Switching element | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 3,000 Hz |
| Readiness delay | 25 ms |
DesignCylindricalThread sizeM18 x 1 mmDimension (Ø x L)18 mm x 40 mmType of installationEmbeddedHousing materialMetalMetal housingNickel-plated brassSensing face materialPlastic, Polybutylene (PBT)Housing colorRed, RAL 3000
SilverType of fasteningMounting threadStandard measuring plate24 x 24 mm², Fe360
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.35 mm² |
